Bead Mills What is a classic bead mill?

What is the difference between a bead mill and an attritor mill?

Bead mills and attritor mills are both used for grinding and dispersing materials down to fine particle sizes. Bead mills work by agitating a mixture of the material to be ground and a grinding medium (beads) with a rotating agitator. This causes the beads to collide with the particles of the feed, breaking them into finer particles. The process is also known as bead milling and the focus is on the chaotic movement, driven by the motion of the beads. Attritor mills, also known as stirred ball mills, operate by rotating a shaft with arms or discs that stir the media and the feed inside a vertical or horizontal tank. This stirring action causes a continuous circulation of the feed and media, creating intense shearing and impact forces that grind the material.

Key Differences

• Mechanism of Action: Bead mills rely more on the energy generated from the motion of the beads within the mill, whereas attritor mills rely on the action of the rotating shaft with attached arms or discs to stir the media and feed.
• Grinding Media Size: Bead mills generally use smaller grinding media compared to attritor mills, which enables finer particle size reduction.
• Dispersion vs. Grinding: While both mills can achieve dispersion and grinding, bead mills are more commonly associated with dispersion applications for nanoparticles and fine chemicals, whereas attritor mills are often used for a broader range of grinding applications.

What are the differences between Planetary Ball Mills and Bead mills?

Bead mills and planetary ball mills are both widely used for particle size reduction and the dispersion of materials in various industries, but they have distinct applications based on their operating principles and the results they achieve.

• Bead mills are primarily used for ultrafine grinding and the dispersion of particles to nano and sub-micron levels. They excel in processing liquid or paste-like materials. Planetary ball mills are used for mixing, homogenizing, and grinding across a broad range of applications, from soft to extremely hard materials. They are well-suited for achieving particle sizes ranging from a few micrometers down to the nano range.
• Bead mills are especially effective for materials that are difficult to grind, including pigments, nanoparticles, and pharmaceutical compounds. Planetary Ball Mills are versatile, allowing for dry, wet, and even cryogenic grinding. They are used in fields such as material science, metallurgy, pharmaceuticals, and chemistry for sample preparation and research.
• Material State: Bead mills are more suitable for liquid or semi-liquid materials, which makes them ideal for wet grinding applications. Planetary ball mills, on the other hand, are versatile, handling dry, wet, or even cryogenic materials.

The Planetary Ball mills, the Mixer Mills MM 500 nano and MM 500 control, as well as the High Energy Ball Mill Emax, offer greater versatility compared to Bead Mills. All these mills are suitable for both dry and wet grinding. Unlike bead mills, RETSCH ball mills can also process larger sample pieces using larger grinding balls. Instead of agitating a liquid/bead mixture, the movement of the grinding jars in these mills ensures excellent circulation of the beads, leading to extremely fine grinding results. Therefore, the RETSCH Planetary Ball mills, the MM 500 nano and MM 500 control, and the Emax can be considered as an alternative to traditional bead mills.

Temperature control in bead mills

Controlling the temperature can be crucial in wet grinding processes or bead beating processes as many materials processed in bead mills are temperature-sensitive. Excessive heat can cause undesirable chemical reactions or physical changes, such as polymer degradation, color changes in pigments, or changes in the crystalline structure of materials. For cell disruption, proteins are very temperature-sensitive and degrade quickly. Maintaining an optimal temperature ensures the integrity of the material's properties. Another aspect is the viscosity: Temperature fluctuations can affect the viscosity of the slurry being processed, which in turn influences the grinding efficiency and the quality of dispersion. A stable temperature ensures consistent viscosity, which is critical for achieving uniform particle sizes and a stable dispersion.

To manage these issues, bead mills often incorporate temperature control mechanisms, such as cooling jackets or external chillers, which circulate a cooling fluid around the grinding chamber to dissipate excess heat. Some mills also feature temperature monitoring systems to enable precise control over the process conditions.

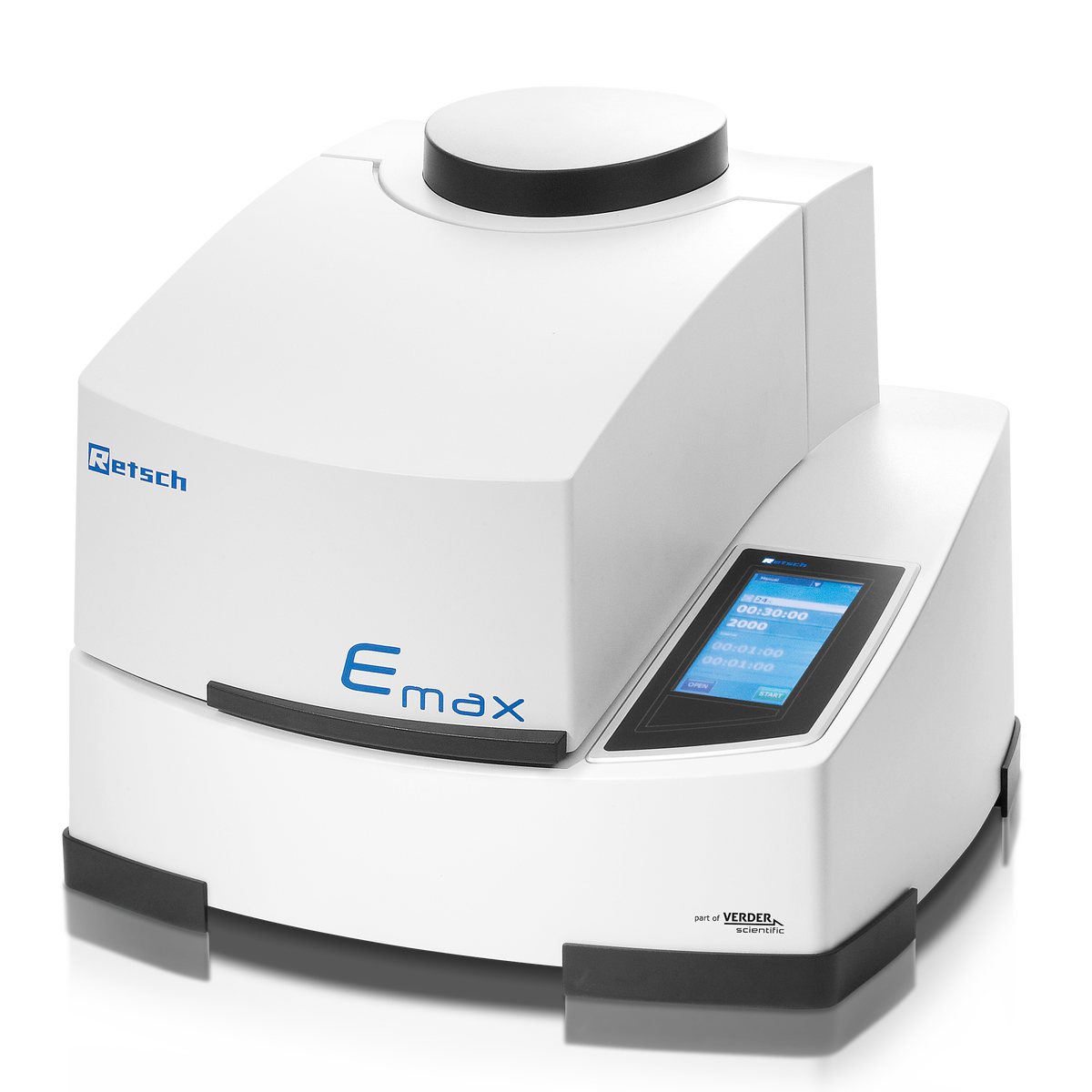

RETSCH offers two bead mills where the temperature can be controlled easily during wet grinding or bead beating: The High Energy Ball Mill Emax and the Mixer Mill MM 500 control.

Innovative cooling system in the MM 500 control

MM 500 control - это высокоэнергетическая лабораторная шаровая мельница, которая может использоваться для сухого, мокрого и криогенного измельчения с частотой до 30 Гц. Это первая на рынке мельница, которая позволяет отслеживать и контролировать температуру процесса измельчения.

Диапазон рабочих температур от -100 до 100 °C. Для обеспечения максимальной гибкости применения мельница может работать с различными теплоносителями, что позволяет использовать различные устройства для охлаждения или нагрева. Если для охлаждения выбран жидкий азот, мельница должна быть оснащена дополнительным устройством расширения cryoPad. Инновационная технология cryoPad позволяет выбирать и контролировать определенную температуру охлаждения в диапазоне от - 100 до 0 °C для процесса измельчения.

For bead beating and wet grinding, the use of the external chiller set to 4 °C is a good choice, so that cell suspensions are efficiently cooled and heat from wet grinding processes is effectively dissipated.

Регулирование температуры на основе термопластин

Охлаждение и нагрев материала образца осуществляется с помощью запатентованной концепции термических пластин, что делает охлаждение образца, например, с помощью открытых ванн с жидким азотом или сухим льдом, неактуальным. Для охлаждения или нагрева размольные стаканы банки просто помещаются на термопластины. Когда стаканы соприкасаются с термопластинами, осуществляется эффективный теплообмен. Запатентованная герметичная конструкция позволяет эксплуатировать мельницу с различными теплоносителями, обеспечивая гибкое и безопасное регулирование температуры и требуя минимальных усилий со стороны оператора. В зависимости от созданной рабочей установки температура термопластин может быть установлена в диапазоне от -100°C до +100°C.

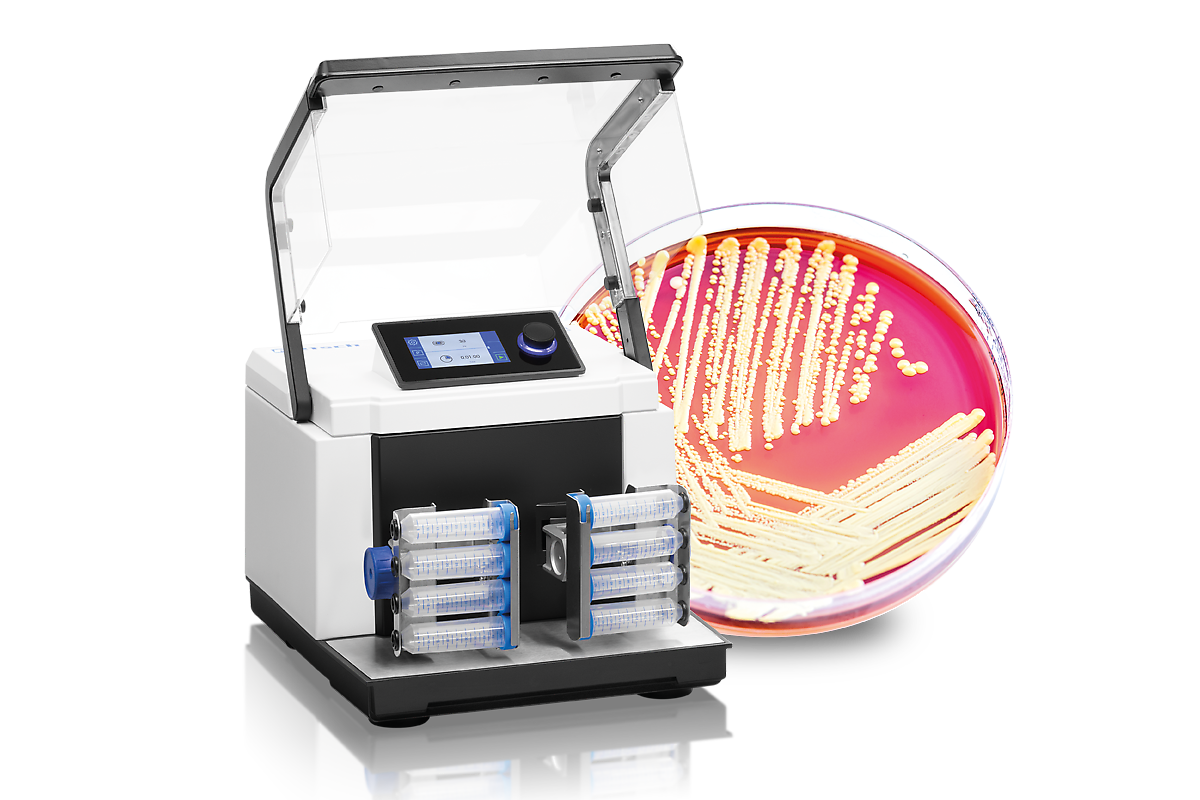

Multi-cavity jars & adapter in the MM 500 control Bead Mill

Simultaneous processing of several small samples is possible with the multi-cavity jars and an adapter for reaction vials. This is a typical requirement, for example, for pharmaceutical, chemical and biochemical applications. The small cavity jars provide new opportunities for mechanochemical research activities involving small amounts of chemicals.

The cavities in the jars have an oval shape which ensures effective mixing. The pouring aids allow for safe sample handling. The multi-cavity jars are made of stainless steel, thus providing effective heat transfer to or from the sample.

The adapter accommodates up to 18 disposable reaction vials of 1.5 or 2.0 ml (e.g. Eppendorf vials) or nine 2.0 ml steel tubes. With its two grinding stations, the MM 500 control mixer mill can process up to 36 samples in one working run. Thus, the MM 500 control is the ideal bead mill for cooled cell disruption and high sample throughput. 2.0 ml steel tubes should be used if samples need to be frozen or heated, as polymeric reaction vessels cannot withstand mechanical load at extreme temperatures. The adapter is made of aluminium so that heat is efficiently transferred to and from the reaction tubes.
